PRODUCT > Strainer

PRODUCT

Strainer

Cast Iron Strainer

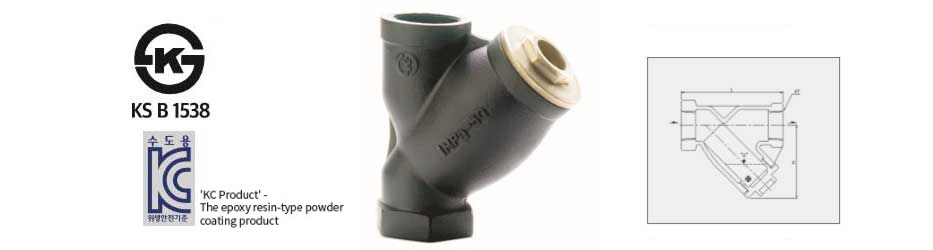

DKY-1S		Cast Iron 1MPa Y Type STEAM STRAINER (SCREWED)

* Features
- The amount of the fluid on the exit of the valve is higher than any other brand.(αstrainer) - The wear and/or mechanical damage of the cover and screen coming from the alien substances can be avoided. - The loss of the fluid amount and pressure from the turbulent flow is pretty low. - The epoxy resin-type powder coating can be done if necessary.(made to order)
* Caution
- If you apply the overpressure during the piping’, it could lead to the damage of it. - So try to do the piping’by applying the proper pressure with the Teflon tape. - Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You should be careful not to make the collapse during the cleaning of the screen.

* Material
1	Body			GC 200
2	Cover			Forged Brass
3	Screen			STS 304
4	Gasket			TEFLON

* Specification
ITEM				CONTENTS
Applicable Fluid				Steam(Mesh) / Water,Liquid(Round Hole)
Working Pressure				Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature				Less than 220℃
Connection Method				KS PT SCREWED
Hydraulic Test				20kgf/㎠(2.0㎫)

* Dimensions
SIZE		-	PT		L	H
mm		inch	mm		mm	mm
15		1/2	1/2		80	60
20		3/4	3/4		95	70
25		1	1		110	85
32		1¼	1¼		135	95
40		1½	1½		160	120
50		2	2		185	145
- The specifications can be changed or revised without giving any notice for the quality improvements. - Nominal sizes of 15~50mm are available for the KS Products. - Nominal sizes of 15~50mm are available for the KC Products.

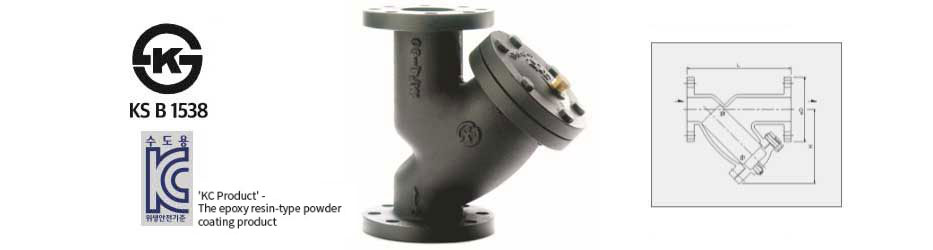

DKY-1F		Cast Iron 1MPa Y Type STEAM STRAINER (FLANGE)

* Features
- The amount of the fluid on the exit of the valve is higher than any other brand.(αstrainer) - The wear and/or mechanical damage of the cover and screen coming from the alien substances can be avoided. - The loss of the fluid amount and pressure from the turbulent flow is pretty low. - The epoxy resin-type powder coating can be done if necessary.(made to order)
* Caution
- Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You need to change the gasket after the cleaning of the screen. - You should be careful not to make the collapse during the cleaning of the screen.

* Material
1	Body			GC 200
2	Cover			Forged Brass
3	Screen			STS 304

* Specification
ITEM				CONTENTS
Applicable Fluid				Steam(Mesh) / Water, Liquid (Round Hole)
Working Pressure				Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature				Less than 220℃
Connection Method				KS 10K FF FLANGE
Hydraulic Test				20kgf/㎠(2.0㎫)

* Dimensions
SIZE		-	L		H	ΦD
mm		inch	mm		mm	mm
65		2½	285		195	175
80		3	305		220	185
100		4	360		275	210
125		5	410		325	250
150		6	480		370	280
200		8	590		450	330
- The specifications can be changed or revised without giving any notice for the quality improvements. - Nominal sizes of 65~200mm are available for the KS Products. - Nominal sizes of 65~200mm are available for the KC Products.

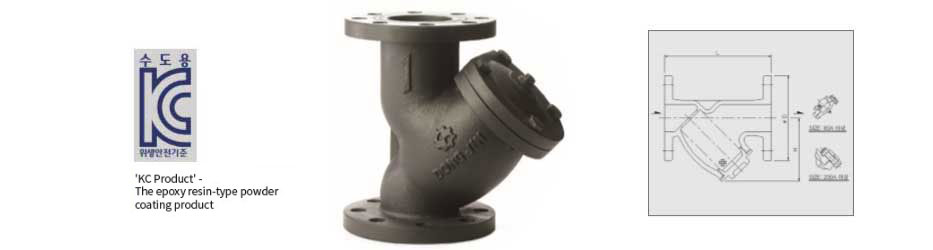

DYS-1F		10K Cast Iron Strainer

* Features
- The built-in hole screen can be used for the piping’s of the large amount of fluids in it. - Even the very fine alien substances can be filtered by the double screen.(made to order) - The mesh of the screen can be varied.(made to order) - The epoxy resin type powder coating can be done if necessary.(made to order)
* Caution
- Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You need to change the gasket after the cleaning of the screen. - You should be careful not to make the collapse during the cleaning of the screen.

* Material
1	Body			GC 200
2	Cover			GC 200
3	Screen			STS 304

* Specification
ITEM				CONTENTS
Applicable Fluid				Water, Liquid
Working Pressure				Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature				Less than 120℃
Connection Method				KS 10K FF FLANGE
Hydraulic Test				15kgf/㎠(1.5㎫)

* Dimensions
SIZE		-	L		H	ΦD
mm		inch	mm		mm	mm
40		1½	195		116	140
50		2	195		116	155
65		2½	205		125	175
80		3	252		190	185
100		4	277		223	210
125		5	307		210	250
150		6	335		240	280
200		8	475		350	330
250		10	590		530	400
300		12	675		600	445
350		14	810		585	490
400		16	905		695	560
- The specifications can be changed or revised without giving any notice for the quality improvements. - Nominal sizes of 65~200mm are available for the KC Products.

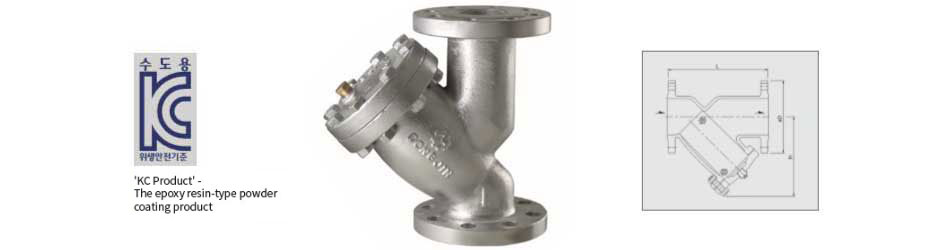

DDYS-2F		20K Ductile Cast Iron Strainer

* Features
- The built-in hole screen can be used for the piping’s of the large amount of fluids in it. - Even the very fine alien substances can be filtered by the double screen.(made to order) - The mesh of the screen can be varied.(made to order) - The epoxy resin type powder coating can be done if necessary.(made to order)
* Caution
- Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You need to change the gasket after the cleaning of the screen. - You should be careful not to make the collapse during the cleaning of the screen.

* Material
1	Body			GCD 450
2	Cover			GCD 450
3	Screen			STS 304(Round Hole)

* Specification
ITEM				CONTENTS
Applicable Fluid				Steam(Mesh) / Water, Liquid (Round Hole)
Working Pressure				Less than 20kgf/㎠(Max. 2.0㎫)
Applicable Temperature				Less than 220℃
Connection Method				KS 20K RF FLANGE
Hydraulic Test				30kgf/㎠(3.0㎫)

* Dimensions
SIZE		-	L		H	ΦD
mm		inch	mm		mm	mm
40		1½	245		166	140
50		2	245		166	155
65		2½	285		201	175
80		3	325		229	200
100		4	375		279	225
125		5	435		334	270
150		6	485		375	305
200		8	585		443	350
250		10	675		510	430
300		12	800		633	480
- The specifications can be changed or revised without giving any notice for the quality improvements. - Nominal sizes of 40~200mm are available for the KC Products.

Cast Steel Strainer

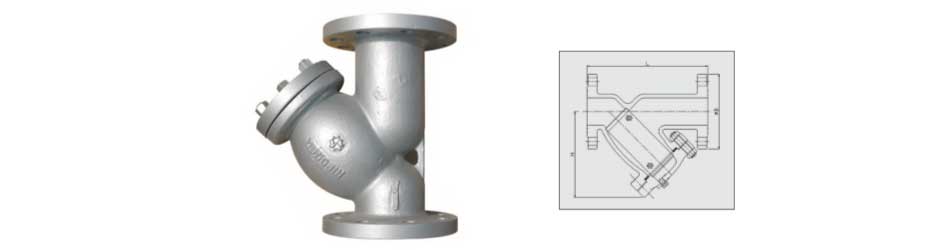

DYSS-1F		10K Cast Steel Strainer

* Features
- The wear and/or mechanical damage of the cover and screen coming from the alien substances can be avoided.
* Caution
- Clean the screen periodically(3 months, 6 months or one year) for the smooth operation. - You need to change the gasket after the cleaning of the screen. - You should be careful not to make the collapse during the cleaning of the screen.

* Material
1	Body			SCPH2
2	Cover			SCPH2
3	Screen			STS304

* Specification
ITEM				CONTENTS
Applicable Fluid				Steam(Mesh) / Water, Liquid
Working Pressure				Less than 10kgf/㎠(Max.1.0㎫)
Applicable Temperature				220℃ Less than
Connection Method				KS 10K RF FLANGE
Hydraulic Test				15kgf/㎠(1.5㎫)

* Dimensions
SIZE		-	L		H	ΦD
mm		inch	mm		mm	mm
50		2	222		146	155
65		2½	272		163	175
80		3	292		189	185
100		4	355		212	210
125		5	395		238	250
150		6	447		275	280
200		8	545		332	330
250		10	665		397	400
300		12	765		490	445
- The specifications can be changed or revised without giving any notice for the quality improvements.

Stainless Strainer

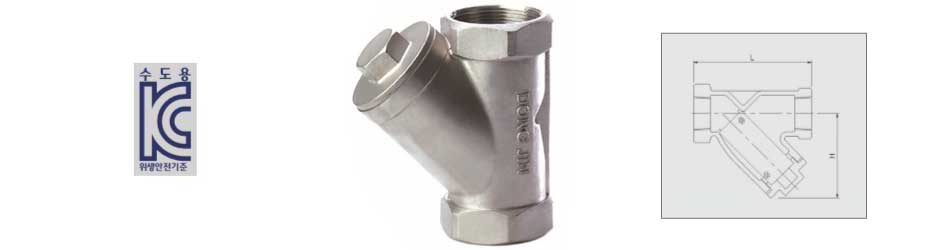

DSTS-1S

* Features
- The valve can be used in the many applications because it is made of stainless steel.
* Caution
- Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You should be careful not to make the collapse during the cleaning of the screen.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Gasket		Teflon
4	Screen		STS 304

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 180℃
Connection Method			KS PT Screwed
Hydraulic Test			15kgf/㎠(1.5㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
15	½	60		39
20	¾	69		45
25	1	83		53
32	1¼	95		65
40	1½	108		72
50	2	130		86
- The specifications can be changed or revised without giving any notice for the quality improvements.

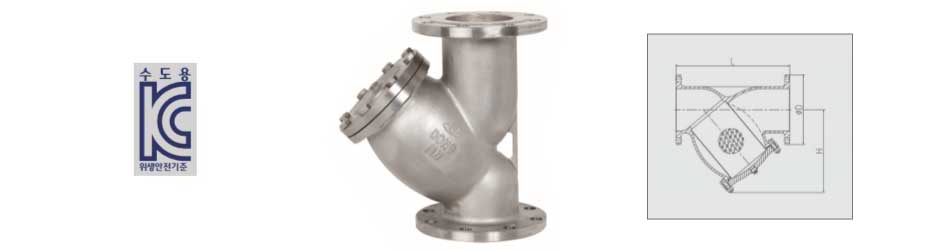

DSTS-1F(SB)

* Features
- The valve can be used in the many applications because it is made of stainless steel.
* Caution
- Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You should be careful not to make the collapse during the cleaning of the screen. - When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Screen		STS 304

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 120℃
Connection Method			KS 10K RF FLANGE
Hydraulic Test			15kgf/㎠(1.5㎫)

* Dimensions
SIZE	-	L		H	ФD
mm	inch	mm		mm	mm
15	½	120		72	95
20	¾	125		84	100
25	1	160		87	125
32	1¼	170		103	135
40	1½	180		105	140
50	2	200		124	155
65	2½	270		153	175
80	3	290		184	185
100	4	340		215	210
- The specifications can be changed or revised without giving any notice for the quality improvements.

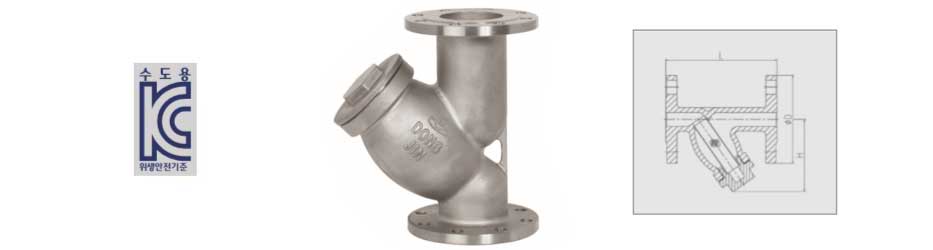

DSTS-1F(BB)

* Features
- The valve can be used in the many applications because it is made of stainless steel.
* Caution
- Clean the screen periodically (3 months, 6 months or one year) for the smooth operation. - You should be careful not to make the collapse during the cleaning of the screen. - When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Screen		STS 304

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			120℃ 이하
Connection Method			KS 10K RF FLANGE
Hydraulic Test			15kgf/㎠(1.5㎫)

* Dimensions
SIZE	-	L		H	ФD
mm	inch	mm		mm	mm
65	2½	268		145	175
80	3	287		164	185
100	4	340		212	210
125	5	392		263	250
150	6	442		295	280
200	8	540		380	330
250	10	665		505	400
300	12	765		550	445
- The specifications can be changed or revised without giving any notice for the quality improvements.
