PRODUCT > Stainless valve

PRODUCT

Stainless valve

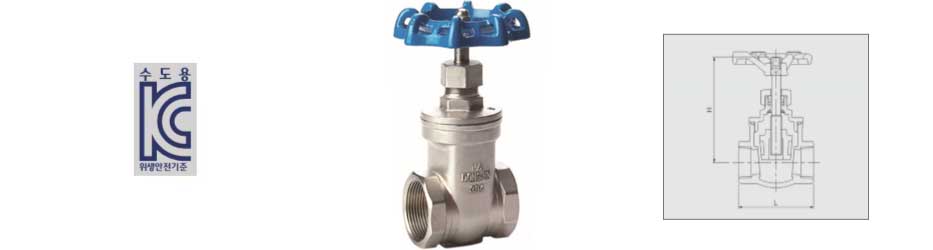

Gate Valve

DGTS-1S

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc..
* Caution
- If you apply some impact on the handle during transportation, there is some possible damage. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Handle		GCD 400
4	Disk		SSC 13
5	Stem		STS 304
6	Gasket		Teflon
7	Packing		Teflon

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 180℃
Connection Method			KS PT Screwed
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
15	½	56		94
20	¾	61		102
25	1	66		110
32	1¼	72		129
40	1½	75		149
50	2	90		180
- The specifications can be changed or revised without giving any notice for the quality improvements.

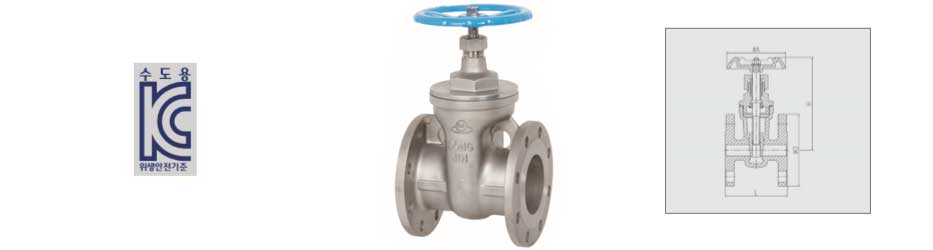

DGTS-1F(SB)		10K Stainless Flanged Gate Valve - S.B TYPE

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* 재질(Material)
1	Body				SSC 13
2	Cover				SSC 13
3	Disc				SSC 13
4	Stem				STS 304
5	Handle				GCD 400

* Specification
ITEM					CONTENTS
Applicable Fluid					Water
Working Pressure					Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature					Less than 120℃
Connection Method					KS 10K RF FLANGE
Hydraulic Test				Body	15kgf/㎠(1.5㎫)
Hydraulic Test				Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE		-	L	H		ФA	ФD
mm		inch	mm	mm		mm	mm
15		½	80	130		80	95
20		¾	90	155		80	100
25		1	100	168		100	125
32		1¼	110	171		100	135
40		1½	125	183		120	140
50		2	140	193		140	155
65		2½	170	210		160	175
80		3	190	256		180	185
100		4	210	300		200	210
- The specifications can be changed or revised without giving any notice for the quality improvements.

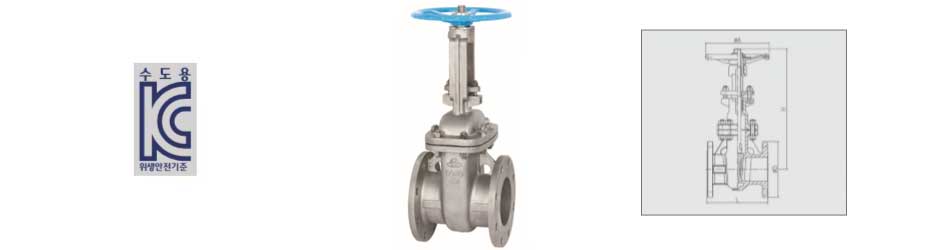

DGTS-1F(BB)		10K Stainless Flanged Gate Valve - B.B TYPE

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* 재질(Material)
1	Body				SSC 13
2	Cover				SSC 13
3	Disc				SSC 13
4	Stem				STS 304
5	Handle				GCD 400

* Specification
ITEM					CONTENTS
Applicable Fluid					Water
Working Pressure					Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature					Less than 120℃
Connection Method					KS 10K RF FLANGE
Hydraulic Test				Body	15kgf/㎠(1.5㎫)
Hydraulic Test				Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE		-	L	H		ℓ	ФD
mm		inch	mm	mm		mm	mm
15		½	108	216		120	95
20		¾	117	230		120	100
25		1	127	255		140	125
32		1¼	140	272		160	135
40		1½	165	307		160	140
50		2	178	332		180	155
65		2½	190	412		200	175
80		3	203	452		200	185
100		4	229	535		240	210
125		5	254	662		280	250
150		6	267	750		300	280
200		8	292	910		320	330
250		10	330	1100		350	400
300		12	356	1290		450	445
- The specifications can be changed or revised without giving any notice for the quality improvements.

Ball Valve

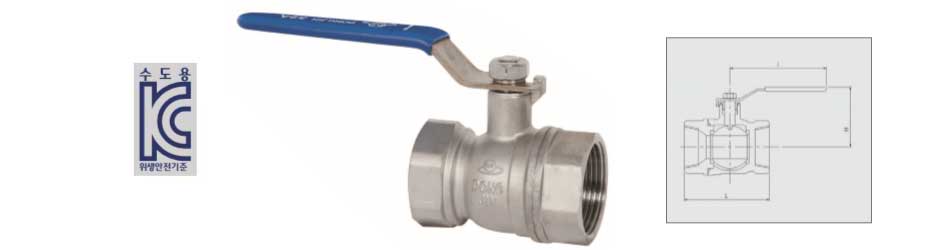

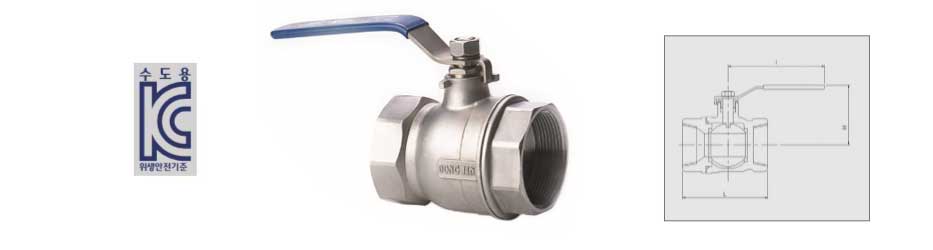

DBS-2S		Stainless Screwed Ball Valve(TWO-PIECE)

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The wear resistance and sealing of the valve are very excellent by using of the Teflon for the seat. - The ball is precision-machined and, therefore, the operation is very smooth and the sealing is perfect.
* Caution
- If you apply some impact on the handle during transportation, there is some possible damage.

* Material
1	Body			SSC 13
2	Cover			SSC 13
3	Handle			STS 304
4	Ball			SSC 13
5	Stem			STS 304
6	Seat Ring			Teflon
7	Gasket			Teflon
8	Packing			Teflon

* Specification
ITEM				CONTENTS
Applicable Fluid				Water, Oil, Air
Working Pressure				Less than 20kgf/㎠(Max. 2.0㎫)
Applicable Temperature				Less than 180℃
Connection Method				KT PT Screwed
Hydraulic Test			Body	30kgf/㎠(3.0㎫)
Hydraulic Test			Seat	22kgf/㎠ (2.2㎫)

* Dimensions
SIZE		-	L		H	ℓ
mm		inch	mm		mm	mm
8		¼	50		53	90
10		⅜	50		53	90
15		½	56		53	90
20		¾	65		58	100
25		1	76		68	120
32		1¼	78		70	120
40		1½	89		76	140
50		2	100		85	160
- The specifications can be changed or revised without giving any notice for the quality improvements.

DBSL-2S		Stainless Long Stem Screwed Ball Valve(TWO-PIECE)

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The wear resistance and sealing of the valve are very excellent by using of the Teflon for the seat. - The ball is precision-machined and, therefore, the operation is very smooth and the ealing is perfect.
* Caution
- If you apply some impact on the handle during transportation, there is some possible damage.

* Material
1	Body			SSC 13
2	Cover			SSC 13
3	Handle			STS 304
4	Ball			SSC 13
5	Stem			STS 304
6	Seat Ring			Teflon
7	Gasket			Teflon
8	Packing			Teflon

* Specification
ITEM				CONTENTS
Applicable Fluid				Water, Oil, Air
Working Pressure				Less than 20kgf/㎠(Max. 2.0㎫)
Applicable Temperature				Less than 180℃
Connection Method				KT PT Screwed
Hydraulic Test)			Body	30kgf/㎠(3.0㎫)
Hydraulic Test)			Seat	22kgf/㎠ (2.2㎫)

* Dimensions
SIZE		-	L		H	ℓ
mm		inch	mm		mm	mm
15		½	52		47	90
20		¾	57		49	90
25		1	65		52	100
32		1¼	78		66	120
40		1½	78		66	120
50		2	102		87	160
- The specifications can be changed or revised without giving any notice for the quality improvements.

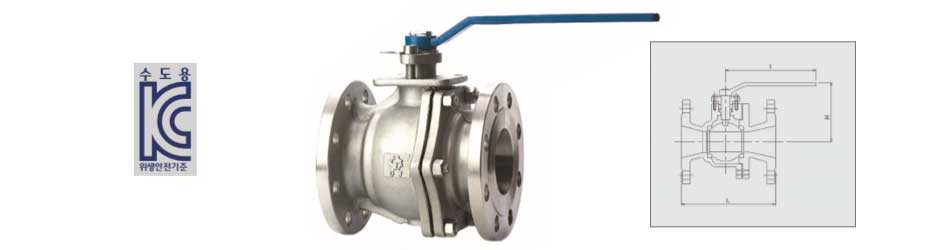

DBS-1F		10K Stainless Flanged Ball Valve

* Features
- The wear resistance and sealing of the valve are very excellent by using of the Teflon for the seat. - The ball is precision-machined and, therefore, the operation is very smooth and the sealing is perfect.
* Caution
- If you apply some impact on the handle during transportation, there is some possible damage.

* Material
1	Body				SSC 13
2	Cover				SSC 13
3	Handle				GCD / 400
4	Ball				SSC 13
5	Stem				STS 304
6	Seat Ring				Teflon
7	Gasket				Teflon
8	Packing				Teflon

* Specification
ITEM					CONTENTS
Applicable Fluid					Water, Oil, Air
Working Pressure					Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature					Less than 80℃
Connection Method					KS 10K RF FLANGE
Hydraulic Test				Body	15kgf/㎠(1.5㎫)
Hydraulic Test				Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE		-	L	H		ℓ	ФD
mm		inch	mm	mm		mm	mm
15		½	108	82		130	95
20		¾	117	85		130	100
25		1	127	95		130	125
32		1¼	140	100		130	135
40		1½	165	115		160	140
50		2	178	120		230	155
65		2½	190	153		230	175
80		3	203	162		400	185
100		4	229	191		400	210
125		5	356	211		400	250
150		6	394	290		460	280
200		8	457	340		800	330
250		10	533	420		1100	400
300		12	610	470		1100	445
- The specifications can be changed or revised without giving any notice for the quality improvements.

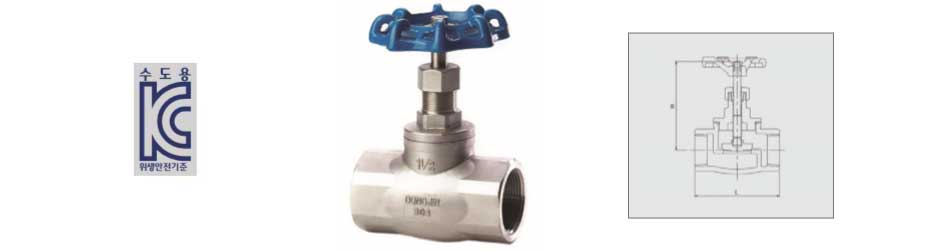

Globe Valve

DGLS-1S

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc.
* Caution
- If you apply some impact on the handle during transportation, there is some possible damage.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Handle		GCD 400
4	Disk		SSC 13
5	Stem		STS 304
6	Gasket		Teflon
7	Packing		Teflon

* Specification
ITEM			CONTENTS
Applicable Fluid			물, 증기
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			180℃ 이하
Connection Method			KS PT Screwed
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
15	½	68		92
20	¾	80		97
25	1	90		108
32	1¼	102		128
40	1½	118		135
50	2	138		150
- The specifications can be changed or revised without giving any notice for the quality improvements.

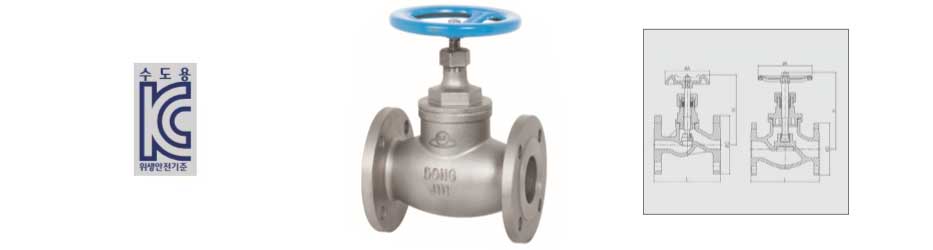

DGLS-1F(SB)		10K Stainless Flanged Globe Valve - S.B TYPE

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* Material
1	Body				SSC 13
2	Cover				SSC 13
3	Disc				SSC 13
4	Stem				STS 304
5	Handle				GCD 400

* Specification
ITEM					CONTENTS
Applicable Fluid					Water
Working Pressure					Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature					Less than 120℃
Connection Method					KS 10K RF FLANGE
Hydraulic Test				Body	15kgf/㎠(1.5㎫)
Hydraulic Test				Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE		-	L	H		ФA	ФD
mm		inch	mm	mm		mm	mm
15		½	108	116		100	95
20		¾	117	127		100	100
25		1	127	147		120	125
32		1¼	140	153		120	135
40		1½	165	203		140	140
50		2	203	230		160	155
65		2½	216	268		180	175
80		3	241	287		200	185
100		4	292	315		220	210
- The specifications can be changed or revised without giving any notice for the quality improvements.

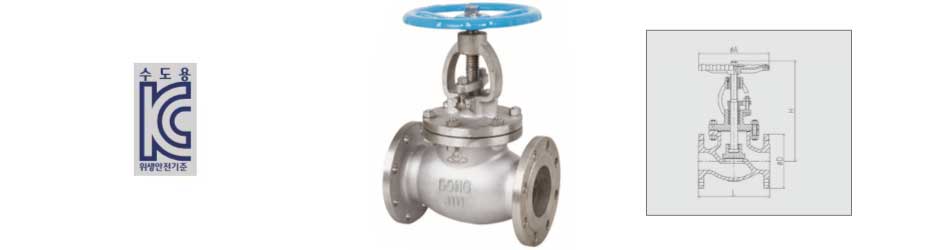

DGLS-1F(BB)		10K Stainless Flanged Globe Valve - B.B TYPE

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* Material
1	Body				SSC 13
2	Cover				SSC 13
3	Disc				SSC 13
4	Stem				STS 304
5	Handle				GCD 400

* Specification
ITEM					CONTENTS
Applicable Fluid					Water
Working Pressure					Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature					Less than 120℃
Connection Method					KS 10K RF FLANGE
Hydraulic Test				Body	15kgf/㎠(1.5㎫)
Hydraulic Test				Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE		-	L	H		ФA	ФD
mm		inch	mm	mm		mm	mm
50		2	203	312		180	155
65		2½	216	315		220	175
80		3	241	361		260	185
100		4	292	415		260	210
125		5	356	515		300	250
150		6	406	545		350	280
200		8	495	640		400	330
- The specifications can be changed or revised without giving any notice for the quality improvements.

Butterfly Valve

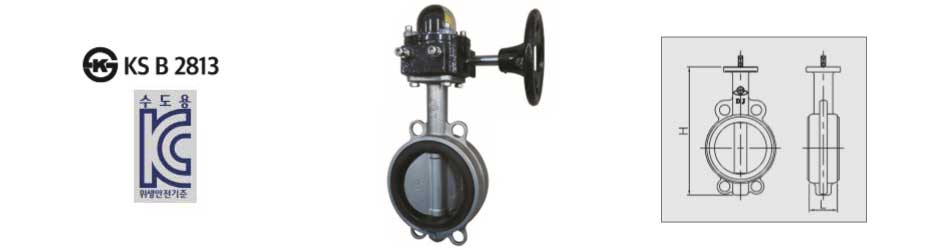

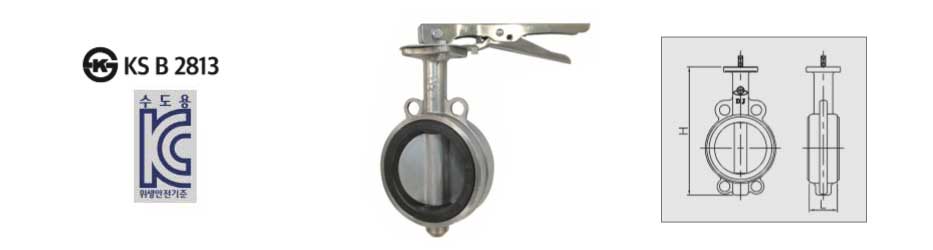

DBLS-1W

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The perfect sealing can be accomplished by using of the investment-cast disc and seat. - It can be also manufactured as a gear type castings.
* Caution
- Need to apply the proper pressure diagonally during the bolting of the piping’s.

* Material
1	Body		SCC 13
2	Disc		SSC 13
3	Handle		STS 304
4	Seat		EPDM
5	Gear Box		SS 400

* Specification
ITEM			CONTENTS
Applicable Fluid			Water, Liquid
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 60℃
Connection Method			KS 10K FF FLANGE
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
50	2	42		240
65	2½	45		264
80	3	45		276
100	4	52		314
125	5	54		340
150	6	56		365
- The specifications can be changed or revised without giving any notice for the quality improvements.

DBGS-1W

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The perfect sealing can be accomplished by using of the investment-cast disc and seat. - It can be also manufactured as a gear type castings.
* Caution
- Need to apply the proper pressure diagonally during the bolting of the piping’s.

* Material
1	Body		SCC 13
2	Disc		SSC 13
3	Handle		STS 304
4	Seat		EPDM
5	Gear Box		SS 400

* Specification
ITEM			CONTENTS
Applicable Fluid			Water, Liquid
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 60℃
Connection Method			KS 10K FF FLANGE
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
50	2	42		240
65	2½	45		264
80	3	45		276
100	4	52		314
125	5	54		340
150	6	56		365
- The specifications can be changed or revised without giving any notice for the quality improvements.

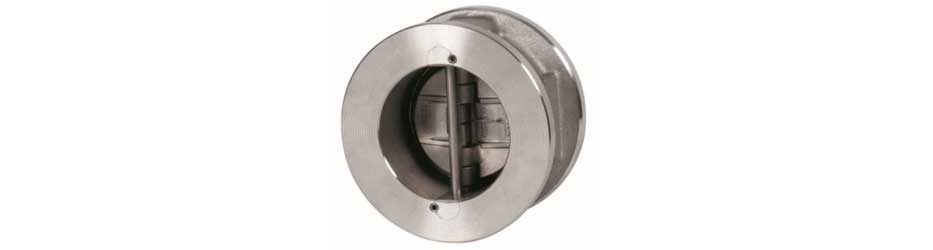

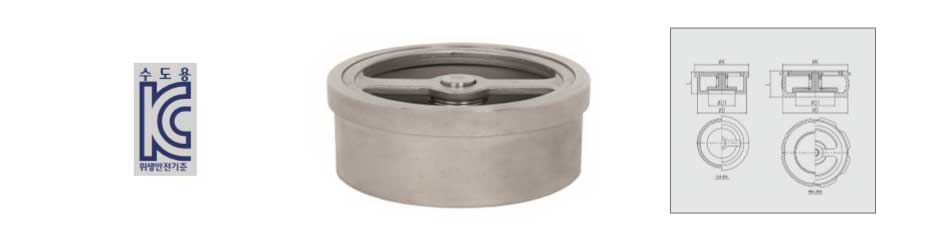

Check Valve

DDC-1W(2W)

* 특징(Info)
- WAFER 타입으로 FLANGE 타입보다 경량이며 설치공간을 적게 차지합니다. - 수직배관뿐만 아니라 수평배관에도 설치 가능합니다. - 내부에 스프링이 설치되어 수격현상(워터햄머)에 의한 충격이 적습니다.
* 주의(Precautions)
- 배관 볼팅시 대각선 방향으로 적당한 세기의 압력으로 작업요망. - 유체 흐름방향과 제품 방향을 일치시켜 설치하십시오. - 수평배관에 설치할 경우 힌지핀이 수직(위아래방향)이 되도록 설치하십시오.

* 재질(Material)
1	몸통(Body)			10K	GC200,GCD450,SCPH2,SSC13
1	몸통(Body)			20K	SCPH2,SSC13
2	디스크(Disc)			SSC13
3	시트(Seat)			NBR,EPDM,VITON,etc

* 사양(Specification)
ITEM				CONTENTS
적용유체(Applicable Fluid)				물
적용압력(Working Pressure)				10kgf/㎠, 20kgf/㎠
적용온도(Applicable Temperature)				60℃ 이하(상시온도)
접속방법(Connection Method)				KS 10K 20K플랜지
수압시험(Hydraulic Test)				10K			20K
			Body	15kgf/㎠(WATER)			30kgf/㎠(WATER)
			Seat	6kgf/㎠(AIR) or 11kgf/㎠(WATER)			6kgf/㎠(AIR) or 22kgf/㎠(WATER)

* 치수(Dimensions)
호칭		지름	L		D		d
mm		inch	10K	20K	10K	20K	10K	20K
40		1½	60	60	86	86	52
50		2	60	60	101	101	60
65		2½	67	67	121	121	64
80		3	73	73	131	137	81
100		4	73	73	156	162	106
125		5	86	86	187	200	130
150		6	98	98	217	235	157
200		8	127	127	267	280	206
250		10	146	146	330	353	255
300		12	181	181	375	403	306
350		14	184	222	420	447	340
400		16	191	232	483	507	390
-본 제품의 사양은 품질 개선을 위하여 예고 없이 변경될 수 있습니다.

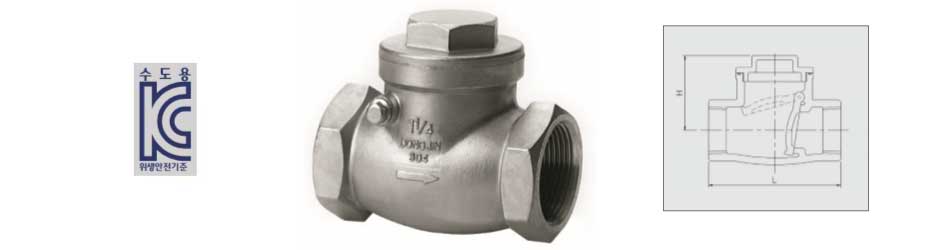

DCHS-1S

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The loss of the fluid amount in the enter and exit is zero and it is one of the most frequently used check valve. - It is very sensitive to the reverse stream and persistent to the sludge. - It has excellent durability because of the metallic seat disc.
* Caution
- Some noises and vibrations can be generated during the operation. - The vertical installation has to be done to keep the perfect sealing.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Disc		SSC 13
4	Pin		STS 304
5	Arm		SSC 13
6	Gasket		Teflon

* Specification
ITEM			CONTENTS
Applicable Fluid			Water, Oil, Air
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			180℃ 이하
Connection Method			KS PT Screwed
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
15	½	64		42
20	¾	73		49
25	1	87		58
32	1¼	101		60
40	1½	116		70
50	2	136		79
- The specifications can be changed or revised without giving any notice for the quality improvements.

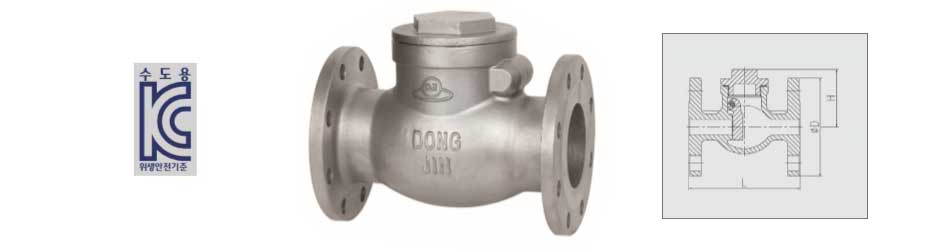

DCHS-1F(SB)

* Features
- The valve can be used in the many applications because it is made of stainless steel. - It has excellent durability because of the metallic seat disc.
* Caution
- Some noises and vibrations can be generated during the operation. - The vertical installation has to be done to keep the perfect sealing. - When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Disc		SSC 13
4	Pin		STS 304
5	Arm		SSC 13

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 120℃
Connection Method			KS 10K RF FLANGE
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H	ФD
mm	inch	mm		mm	mm
15	½	108		56	95
20	¾	117		62	100
25	1	127		66	125
32	1¼	140		68	135
40	1½	165		77	140
50	2	203		97	155
65	2½	216		113	175
80	3	241		124	185
100	4	292		148	210
- The specifications can be changed or revised without giving any notice for the quality improvements.

DCHS-1F(BB)

* Features
- The valve can be used in the many applications because it is made of stainless steel. - It has excellent durability because of the metallic seat disc.
* Caution
- Some noises and vibrations can be generated during the operation. - The vertical installation has to be done to keep the perfect sealing. - When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s.

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Disc		SSC 13
4	Pin		STS 304
5	Arm		SSC 13

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			Less than 120℃
Connection Method			KS 10K RF FLANGE
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H	ФD
mm	inch	mm		mm	mm
50	2	203		112	155
65	2½	216		130	175
80	3	241		147	185
100	4	292		177	210
125	5	330		189	250
150	6	356		209	280
200	8	495		257	330
250	10	622		296	400
300	12	698		343	445
- The specifications can be changed or revised without giving any notice for the quality improvements.

DLCS-1W		10K Stainless Pan Check Valve

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The operation is very smooth and the sealing is perfect. - It has excellent durability because of the metallic seat disc.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* Material
1	Body				SSC 13
2	Top Gide				SSC 13
3	Disc				SSC 13

* Specification
ITEM					CONTENTS
Applicable Fluid					Water
Working Pressure					Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature					Less than 120℃
Connection Method					KS 10K FLANGE
Hydraulic Test				Body	15kgf/㎠(1.5㎫)
Hydraulic Test				Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE		-	L	ФD		ФD1	ФK
mm		inch	mm	mm		mm	mm
40		1½	32	79		39	86
50		2	40	90		49	100
65		2½	46	110		60	118
80		3	50	125		73	132
100		4	61	150		90	152
125		5	90	183		118	183
150		6	104	214		138	214
200		8	140	264		184	264
- The specifications can be changed or revised without giving any notice for the quality improvements.

- When operating in the excessive pressure, note that there is a risk of damage.
- If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged.
- Therefore, do not throw it or give the impact on it with the hard material.

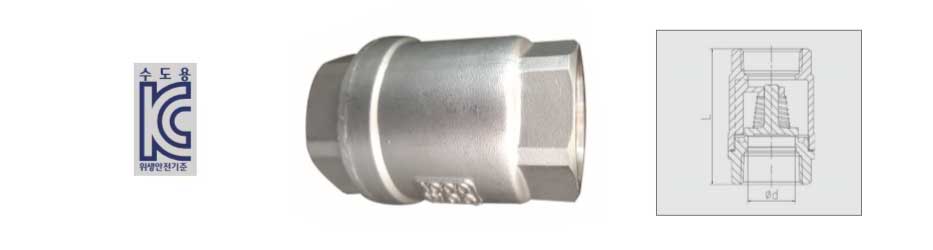

DLCS-1S

* Features
- The valve can be used in the many applications because it is made of stainless steel. - It has excellent durability because of the metallic seat disc.
* Caution

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Disk		SSC 13
4	Spring		STS 304
5	Gasket		PTFE(Teflon)

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			120℃ 이하
Connection Method			KS PT Screwed
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
15	½	60		14
20	¾	63		18
25	1	74		24
32	1¼	86		31
40	1½	100		38
50	2	110		47
- The specifications can be changed or revised without giving any notice for the quality improvements.

DLCS-1F		10K Stainless Lift Check Valve

* Features
- The valve can be used in the many applications because it is made of stainless steel. - The perfect sealing can be kept because the water hammering can be reduced by using of the built-in spring and the seat is made of VITON.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material.

* Material
1	Body			SSC 13
2	Cover			SSC 13
3	Spring			STS 304
4	Top Gide			SSC 13
5	Disk			SSC 13
6	Disk Seat			VITON

* Specification
ITEM				CONTENTS
Applicable Fluid				Water
Working Pressure				Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature				Less than 120℃
Connection Method				KS 10K RF FLANGE
Hydraulic Test			Body	15kgf/㎠(1.5㎫)
Hydraulic Test			Seat	11kgf/㎠ (1.1㎫)

* Dimensions
SIZE		-	L		H	ΦD
mm		inch	mm		mm	mm
40		1½	160		143	140
50		2	184		160	155
65		2½	200		165	175
80		3	210		190	185
100		4	218		190	210
125		5	253		240	250
150		6	278		255	280
200		8	415		285	330
250		10	460		305	400
300		12	605		335	445
- The specifications can be changed or revised without giving any notice for the quality improvements.

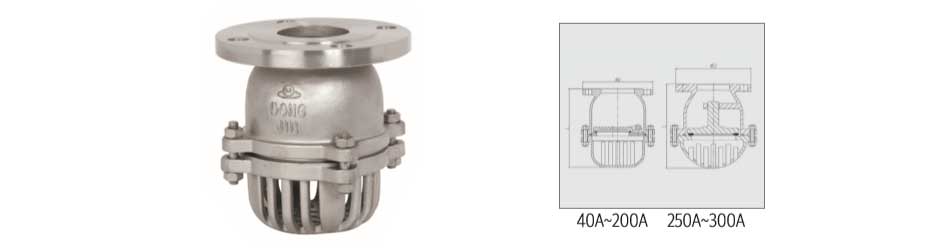

Foot Valve

DFVS-1F

* Features
- The perfect sealing can be kept by using of the VITON material for the seat. - Disc, 40~200A: SWING TYPE 250~300A: LIFT TYPE.
* Caution
- When operating in the excessive pressure, note that there is a risk of damage. - Need to apply the proper pressure diagonally during the bolting of the piping’s. - If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material

* Material
1	Body		SSC 13
2	Cover		SSC 13
3	Disc		SSC 13
4	Disc Seat		VITON

* Specification
ITEM			CONTENTS
Applicable Fluid			Water
Working Pressure			Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature			120℃ 이하
Connection Method			Less than 120℃
Hydraulic Test		Body	15kgf/㎠(1.5㎫)
Hydraulic Test		Seat	11kgf/㎠(1.1㎫)

* Dimensions
SIZE	-	L		H
mm	inch	mm		mm
40	1½	135		140
50	2	155		155
65	2½	180		175
80	3	212		185
100	4	240		210
125	5	283		250
150	6	330		280
200	8	398		330
250	10	380		400
300	12	440		445
- The specifications can be changed or revised without giving any notice for the quality improvements.

COMPANY : DONG JIN VALVE INC. CEO : JONG OH KIM TEL : 031) 594-7490 FAX : 031)594-7491
ADDRESS : 16, BIRYOUNG-RO 411BEONAN-GIL, HWADO-EUP, NAMYAMGJU-SI, GYEONGGI-DO, KOREA
YOU ARE PROHIBITED FROM USING ALL IMAGES AND CONTENTS USED ON THIS SITE.

FAMILY SITE

BANK INFO

국민은행 235008-78-036005
농협은행 235008-78-036005
예금주 홍길동

ESCROW SERVICE

고객님은 안전거래를 위해 저희 홈페이지에서 가입한 구매안전(에스크로) 서비스를 이용 하실 수 있습니다.
