Globe Valve

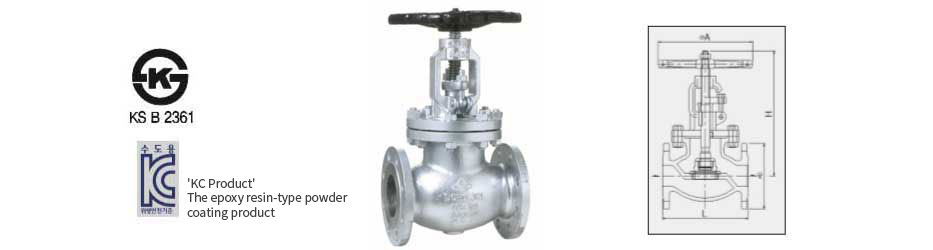

DSGL-1F		10k Cast Steel Flange Type Globe Valve
* Features
- The opening and closing of valve can be checked easily by naked eyes because the valve stem and handle move vertically when the valve is opened and closed. - The valve could be opened and closed smoothly by the precision machining of the valve stem. - The epoxy resin-type powder coating can be done if necessary.(made to order)
* Caution
- If you drop the valve on the hard material or give the impact on it,the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material. - Be careful not to operate the valve with the overpressure, which leads to the damage on it.
* Material
1	Body					SCPH2
2	Cover					SCPH2
3	Trim					13 Cr.
* Specification
ITEM						CONTENTS
Applicable Fluid						Water, Steam, Oil
Working Pressure						Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature						Less than 220℃
Connection Method						KS 10K RF FLANGE
Hydraulic Test				Body		21kgf/㎠(2.1㎫)
				Seat		16kgf/㎠(1.6㎫)
* Dimensions						* Over 350mm is made to order.
SIZE	-		L		H		ΦA		ΦD
mm	inch		mm		mm		mm		mm
50	2		203		325		200		155
65	2½		216		335		200		175
80	3		241		350		250		185
100	4		292		368		280		210
125	5		356		408		300		250
150	6		406		450		350		280
200	8		495		560		500		330
- H is for the reference. - The specifications can be changed or revised without giving any notice for the quality improvements. - Nominal sizes of 50~300mm are available for the KS Products. - Nominal sizes of 50~300mm are available for the KC Products.

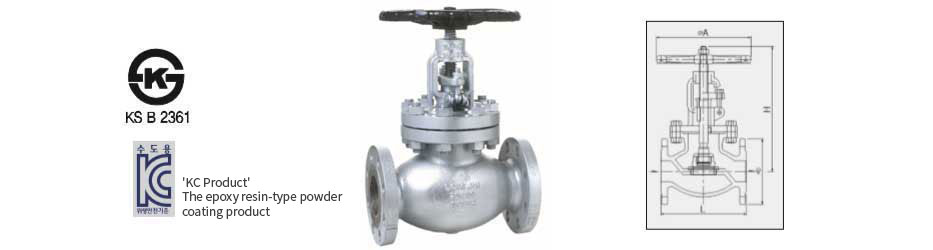

DSGL-2F		20k Cast Steel Flange Type Globe Valve
* Features
- The opening and closing of valve can be checked easily by naked eyes because the valve stem and handle move vertically when the valve is opened and closed. - The valve could be opened and closed smoothly by the precision machining of the valve stem. - The epoxy resin-type powder coating can be done if necessary.(made to order)
* Caution
- If you drop the valve on the hard material or give the impact on it, the valve and stem could be damaged. - Therefore, do not throw it or give the impact on it with the hard material. - Be careful not to operate the valve with the overpressure, which leads to the damage on it.
* Material
1	Body					SCPH2
2	Cover					SCPH2
3	Trim					13 Cr.
* Specification
ITEM						CONTENTS
Applicable Fluid						Water, Steam, Oil
Working Pressure						Less than 20kgf/㎠(Max. 2.0㎫)
Applicable Temperature						Less than 220℃
Connection Method						KS 20K RF FLANGE
Hydraulic Test				Body		53kgf/㎠(5.3㎫)
				Seat		39kgf/㎠(3.9㎫)
* Dimensions						*Over 350mm is made to order
SIZE	-		L		H		ΦA		ΦD
mm	inch		mm		mm		mm		mm
50	2		267		325		200		155
65	2½		292		372		250		175
80	3		318		385		280		200
100	4		356		415		350		225
125	5		400		475		400		270
150	6		444		546		400		305
200	8		559		600		500		350
- H is for the reference. - The specifications can be changed or revised without giving any notice for the quality improvements. - Nominal sizes of 50~300mm are available for the KS Products. - Nominal sizes of 50~300mm are available for the KC Products.

Check Valve

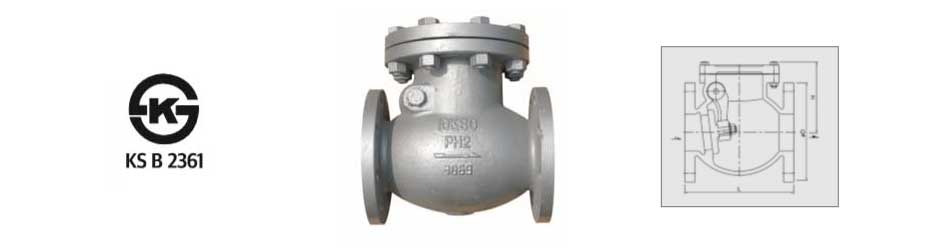

DSCS-1F		10K Cast Steel Check Valve (Swing)
* Features
- It is swing-type and very accurate in operation. - The loss of the fluid amount in the enter and exit is zero and it is one of the most frequently used check valve..
* Caution
- Need to apply the proper pressure diagonally during the bolting of the pipings. - Some noises and vibrations can be generated during the operation. - The vertical installation has to be done to keep the perfect sealing.
* Material
1	Body					SCPH2
2	Cover					SCPH2
3	Trim					SCPH2 + 13 Cr.
* Specification
ITEM						CONTENTS
Applicable Fluid						Water, Liquid
Working Pressure						Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature						Less than 120℃
Connection Method						KS 10K RF FLANGE
Hydraulic Test				Body		15kgf/㎠(1.5㎫)
				Seat		11kgf/㎠(1.1㎫)
* Dimensions
SIZE		-			L		H		ΦD
mm		inch			mm		mm		mm
50		2			203		146		155
65		2½			216		155		175
80		3			241		168		185
100		4			292		200		210
125		5			330		221		250
150		6			356		290		280
200		8			495		350		330
250		10			622		402		400
300		12			698		445		445
- H is for the reference. - The specifications can be changed or revised without giving any notice for the quality improvements.

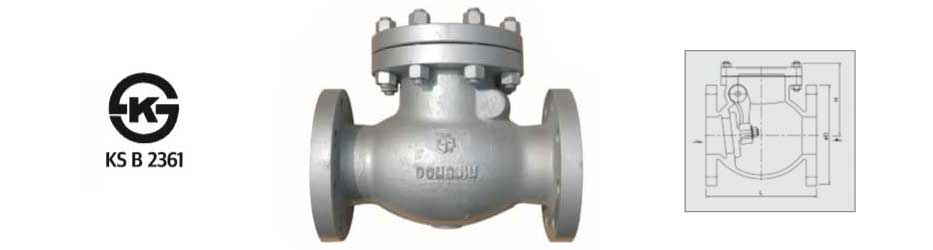

DSCS-2F		20K Cast Steel Check Valve (Swing)
* Features
- It is swing-type and very accurate in operation. - The loss of the fluid amount in the enter and exit is zero and it is one of the most frequently used check valve.
* Caution
- Need to apply the proper pressure diagonally during the bolting of the pipings. - Some noises and vibrations can be generated during the operation. - The vertical installation has to be done to keep the perfect sealing.
* Material
1	Body					SCPH2
2	Cover					SCPH2
3	Trim					SCPH2 + 13 Cr.
* Specification
ITEM						CONTENTS
Applicable Fluid						Water, Liquid
Working Pressure						Less than 10kgf/㎠(Max. 1.0㎫)
Applicable Temperature						Less than 120℃
Connection Method						KS 20K RF FLANGE
Hydraulic Test				Body		30kgf/㎠(3.0㎫)
				Seat		22kgf/㎠(2.2㎫)
* Dimensions
SIZE		-			L		H		ΦD
mm		inch			mm		mm		mm
50		2			267		165		155
65		2½			292		167		175
80		3			318		184		200
100		4			356		220		225
125		5			400		240		270
150		6			444		299		305
200		8			533		367		350
250		10			622		435		430
300		12			711		491		480
- H is for the reference. - The specifications can be changed or revised without giving any notice for the quality improvements.
